An electromechanical assembly is a unit that combines electrical parts (PCBAs, wiring, sensors, switches and power supplies) with mechanical parts (motors, gears, shafts, springs and housings) so that an electrical signal produces physical motion or work. A car's power window is one: a switch sends a signal and a motor drives the glass. So is a standing desk where a keypad tells the motors in the legs to raise the frame.
Electromechanical assemblies are everywhere in modern manufacturing, and are crucial to the most basic function of most equipment and products. The complexity of assembling and designing them is daunting – the ability to combine both electrical and mechanical parts in a reliable and consistent way is a definite skill.
Because of this complexity, many equipment manufacturers who need electromechanical assemblies to incorporate them into their equipment will have them designed and manufactured by subcontracting their requirements to specialized companies that can supply these assemblies that meet their specifications.
Key Takeaways
An electromechanical assembly joins electrical parts (PCBAs, wiring, sensors, switches) with mechanical parts (motors, gears, shafts, housings) so that an electrical signal produces motion or physical work.
It sits between PCB or harness assembly and box build: it can ship as a sub-assembly to your line or form the core of a finished product.
If a product has a motor, a PCBA and a custom housing, buy it as one program from one supplier, so fit problems at integration stay with the manufacturer.
Testing has to cover both sides: IPC-A-610 for boards, IPC/WHMA-A-620 for harnesses, plus torque, functional, hipot and IP tests where the product needs them.
An accurate quote needs a BOM with approved alternates, STEP and 2D drawings, wiring diagrams, motor specs, a test specification with IPC class and IP code, and target certifications.
Table of Contents
- Key Takeaways
- What is an Electromechanical Part?
- What is an Electromechanical Assembly?
- Key Components in Electromechanical Assemblies
- Electromechanical Systems Compared With Other Types of Systems
- How Is Electromechanical Assembly Different From PCB Assembly, Cable Assembly and Box Build?
- What is the Electromechanical Assembly Process?
- What Tests and Standards Should You Specify for an Electromechanical Assembly?
- What are the Biggest Challenges in Electromechanical Assembly?
- What are Typical Applications for Electromechanical Assembly?
- Electromechanical Assembly in Contract Manufacturing
- What Should You Send a Contract Manufacturer for an Electromechanical Assembly Quote?
- Komaspec’s Electromechanical Assembly Services
- Frequently Asked Questions
What is an Electromechanical Part?

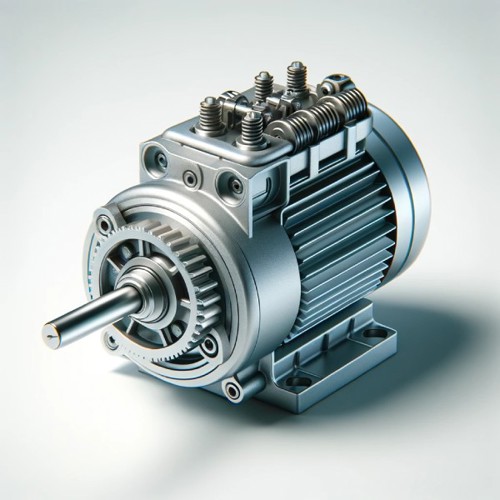

Electromechanical parts are integral components that merge electrical and mechanical functionalities that are found in a wide array of everyday devices. Any device combining both electrical and mechanical parts can be called electro-mechanical. They are used in a wide variety of household, commercial, and industrial equipment because of their key function: receiving electrical signals or inputs and then exerting physical force or conducting work. An electrical motor is one such device that receives electrical energy which it converts into rotational mechanical motion.
What is an Electromechanical Assembly?
An electromechanical assembly is a sub-assembly or finished unit that combines electrical and mechanical components to create complex functional systems. This process involves carefully integrating parts like motors, switches, and gears, with electronic circuits ensuring that each element works in concert with others to deliver the desired functionality.
These assemblies are devices or systems where the electrical components, such as power sources, control circuits, and wiring, effectively interact with mechanical components, like moving parts and structural frameworks, resulting in a fully operational unit.
Examples of an Electromechanical Assembly
Motors, fans and switches are the electromechanical devices found inside almost every assembly, each performing a key operational function.

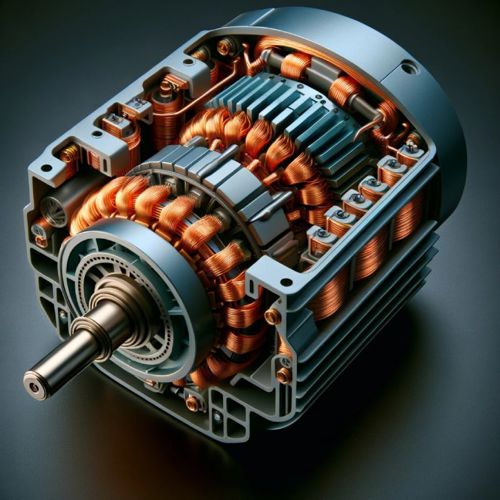

- Motors convert electrical energy to mechanical energy, which is essential for motion in devices; from small precision instruments to large industrial machines.
- Fans are important for thermal regulation, maintaining optimal operating temperatures through effective heat dissipation.
- Switches are integral in control circuits which enable user interaction and system regulation, providing functionalities like start-stop control and safety cut-offs.
Key Components in Electromechanical Assemblies
Electrical/Electronic Components

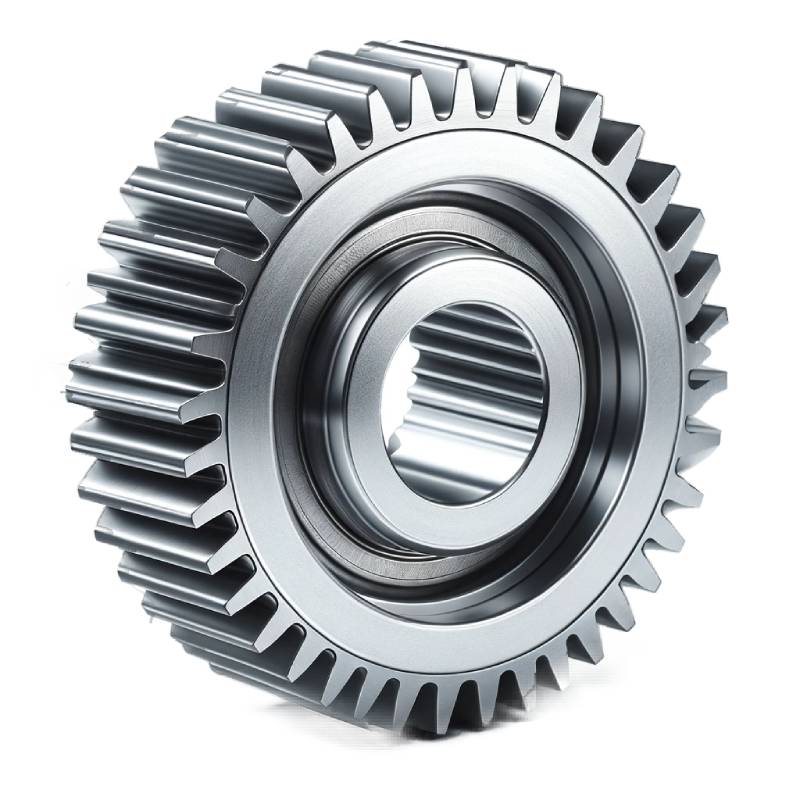

Mechanical Systems
Together, these electrical, electronic, and mechanical components form the backbone of electromechanical systems, each playing an integral role in ensuring that the system performs its intended functions effectively, reliably, and efficiently.
Electromechanical Systems Compared With Other Types of Systems
Electromechanical systems blend the best of both worlds. They have the control and precision of electronics with the physical strength and endurance of mechanics. This combination allows them to tackle a wider range of tasks, with greater flexibility and efficiency than if they were purely mechanical, purely electronic, or only based on chemical reactions.
Electromechanical systems differ from purely mechanical ones. They bring in the electronic element, allowing for more sophisticated control and diverse functions than what you'd get with just gears and levers. It's like having a smart brain controlling the muscle. This blend of electronics with mechanics opens up possibilities for automation and precision that purely mechanical systems just can't match.
When you put electromechanical systems side by side with purely electronic ones, the contrast is quite clear. Purely electronic systems are all about processing and electrical signal propagation. But electromechanical systems make things move, they apply force, and they can do physical work.
Electrochemical systems, like batteries or fuel cells, have different roles altogether. Electrochemical systems store and convert energy through chemical reactions.
How Is Electromechanical Assembly Different From PCB Assembly, Cable Assembly and Box Build?
These four terms get used loosely on quotes, and the difference decides what you're actually buying. A PCB assembler hands you a populated board. A cable house hands you harnesses. An electromechanical assembler joins those boards and harnesses to motors, actuators, switches and mechanical parts so the unit moves or does work. A box build goes one step further and delivers the finished product, enclosed, labeled and packed.
| Scope | What you receive | Workmanship standard | Typical risk |
|---|---|---|---|
| PCB assembly (PCBA) | A populated, tested circuit board | IPC-A-610 | The board passes its own test, then fails once it's wired into the product |
| Cable and wire harness assembly | Harnesses cut, terminated and continuity-tested | IPC/WHMA-A-620 | Lengths and routing drawn without the enclosure in hand |
| Electromechanical assembly | A working module or product: boards, harnesses, motors, actuators and mechanical parts joined and tested | IPC-A-610 and IPC/WHMA-A-620, plus your test specification | Fit and tolerance between moving parts and the electronics |
| Box build | A finished product: enclosed, tested, labeled and packed | All of the above, plus product safety and EMC standards | Splitting the build across several vendors |
The line between the last two blurs in practice. A motor-and-gearbox module with its driver board might ship to your own line as an electromechanical sub-assembly, or it might be the core of a box build the same supplier finishes.
Our recommendation: if the product has a motor, a PCBA and a custom housing, buy it as one program from one supplier. Split the electronics from the mechanics across two vendors and every fit problem at integration becomes yours to referee.
What is the Electromechanical Assembly Process?

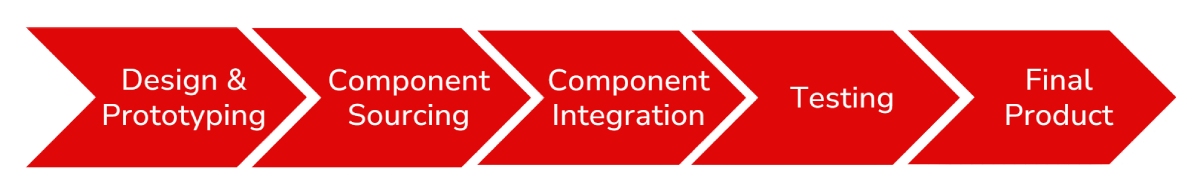

The electromechanical assembly process involves designing, and assembling electronic and mechanical components, integrating them, conducting rigorous testing for functionality, and performing quality control to make the final product. The assembly process has the following steps:
- Design and Prototyping - Design and prototyping is the first phase. Engineers use Computer-Aided Design (CAD) software, crafting detailed models of the intended system. Once the design takes shape, a prototype is produced, allowing a tangible assessment of how the final product might look and operate.
- Component Sourcing and Inspection - Components are procured from various sources based on specifications. Each piece goes through a rigorous inspection to ensure it meets the accuracy, reliability, and performance criteria.
- Integration of Mechanical and Electrical Components - Components are aligned, meticulously fitted, connected, and securely fastened. Electronic components are soldered onto PCBs while mechanical parts are joined through techniques like welding or bolting. It’s a combination of different skills and techniques coming together to build something greater than the sum of its parts.
- Firmware Loading and Configuration - Firmware is flashed onto the control board on the line, and settings such as motor speed limits or sensor calibration are loaded before the unit reaches final test.

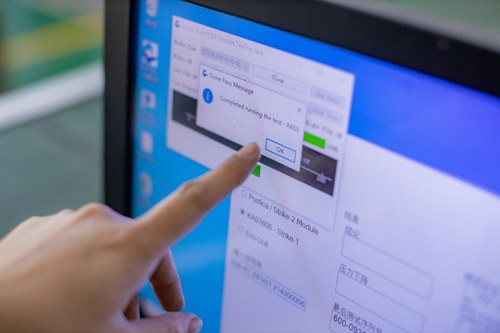

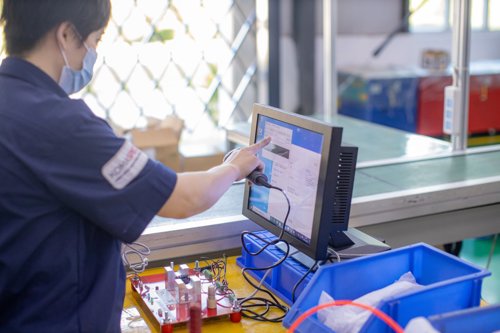

- Testing and Quality Control - Finally, the assembled system is put through its paces. Electrical connections are checked, mechanical parts are tested for their movement, and the overall functionality of the system is scrutinized. Quality control is the watchful eye over this entire process, ensuring that every detail matches the design specifications.
Each step in this process is meticulously performed so that the final electromechanical system is reliable and efficient.
Automation and Manual Aspects in the Process
Putting together electromechanical systems requires a mix of employing machines and people. Machines and robots are great for repeated tasks like placing and soldering tiny electrical parts on circuit boards. They do this efficiently and accurately.
But, there are parts of the job where you need a human skilled worker. People are better at such jobs because they can handle delicate details and make sure everything is done just right.
So, in building electromechanical systems, machines are used for their speed and accuracy, and people are there for their ability to handle the finer details, making sure the final product is of high quality and reliability.
What Tests and Standards Should You Specify for an Electromechanical Assembly?
An electromechanical assembly has to be tested on both sides: electrical workmanship and safety, and mechanical function. Write the tests into the RFQ. A supplier that isn't told what to test will use its own default, and that can be as little as a visual check and a power-on.
| Test layer | What it checks | Reference |
|---|---|---|
| Incoming inspection | Motors, switches, relays and sensors match the BOM part number and rating | Your BOM and approved vendor list |
| Board workmanship | Solder joints, component placement and polarity | IPC-A-610, Class 1, 2 or 3 |
| Harness workmanship | Crimps, pin-out and continuity | IPC/WHMA-A-620 |
| ESD control | Handling of static-sensitive boards and ICs during assembly | ANSI/ESD S20.20 |
| Mechanical checks | Fastener torque, alignment, free movement of gears, shafts and linkages | Your drawings and torque specification |
| Electrical safety | Insulation between live parts and accessible metal (hipot), ground bond | The product safety standard (UL, CSA, IEC) |
| Functional test | The unit does its job: motors reach speed, sensors read, displays and controls respond | Your test specification |
| Ingress | Sealing against dust and water | IEC 60529 (IP code) |
Pick the IPC class deliberately
IPC-A-610 sorts electronic assemblies into three classes. Class 1 is general electronics, Class 2 covers dedicated service equipment, which includes most industrial and commercial products, and Class 3 is for high-performance products where downtime can't be tolerated. Class 3 costs more because inspection takes longer and more boards get rejected. Specify Class 2 unless a regulation or your own customer demands Class 3. Harnesses are judged separately, against IPC/WHMA-A-620.
Ask how ESD is controlled on the line
The EOS/ESD Association notes that many electronic components can be damaged by less than 100 volts, while a worker at a bench can build up 6,000 V at 10 to 25% relative humidity. On an electromechanical line, bare boards get handled next to motors, metal brackets and plastic housings, so an ESD program built to ANSI/ESD S20.20 matters as much here as in a PCB shop.
Name the IP code, not "waterproof"
Under IEC 60529, IPX7 means the enclosure keeps out harmful water during 30 minutes of immersion at 1 m. It doesn't automatically pass the IPX5 and IPX6 water-jet tests, so a product that will be hosed down and occasionally dunked needs both, written as IPX5/IPX7. The mining IoT device and the kayak propulsion system listed earlier both went through IPX7 testing, and on that kind of product the sealing design gets settled during prototyping, long before mass production.
Treat hipot as part of the safety spec
A hipot (dielectric withstand) test applies a high voltage between live parts and accessible metal and checks that leakage current stays under a set limit. The product's safety standard sets the voltage and the duration, and for mains-powered equipment it may require the test on every unit, so take the numbers from the standard rather than from the supplier's default.
What are the Biggest Challenges in Electromechanical Assembly?
Here are some challenges in manufacturing electromechanical assemblies:
- Multiple types of parts, materials, and processes have to be placed together in the same assembly. These may be plastic, aluminum, cables, or steel parts which should all mate and fit well and operate without wear or damage to each other.
- Since these are two different types of parts: a mechanical, moving system, and the other an electrically controlled part; combining them into one unit is difficult. This has challenges for both systems like tolerance, fit, firmware, cabling, etc. that are compounded when they are merged to form a single functional unit.
- Each of these types of parts requires different expertise. For mechanical parts, you need expertise, for example, in CNC machining of bushings, shafts, and other parts. While for electrical experience in SMT production, electrical system design, and quality control and design of complex parts such as PCBAs and electrical harnesses. Electromechanical assemblies require a high level of expertise and capability in both areas, and this is difficult to find in a single manufacturer.
- Tolerances stack up across both sides. A PCB on standoffs inside a molded housing has to line up with a connector cut-out, a switch actuator or a motor shaft, and the plastic, the sheet metal and the board placement each bring their own tolerance. Add them up the wrong way and you get a button that sticks or a connector that won't mate. A DFM review catches this on paper, before the mold is cut.
What are Typical Applications for Electromechanical Assembly?
Electromechanical assemblies are at the heart of most industries, as actuators, pumps, fans, motors, and other typical electromechanical parts are the core building blocks of most equipment and electrical products we use on any given day. Here are some electromechanical assemblies used in various products:
Home Appliances
- Electrical Switches
- Electrical cooling systems
- Dispensing systems
- Cooling fans
Mechatronics
- Part grippers
- Electrical motors
- Linear actuators
- Solenoids
Automotive Industry
- Electric Power Steering Systems
- Anti-Lock Braking Systems (ABS)
- Power Windows
Aviation Industry
- Fly-By-Wire Controls
- Moving Flight Control Surfaces
- Aircraft Landing Gear Systems
Industrial Sector
- Assembly Line Robots
- Automated Material Handling Systems
- Electrical pumps
- Packaging Systems
Electromechanical Assembly in Contract Manufacturing
Contract manufacturers play a pivotal role, in electromechanical equipment assembly, serving as the backbone for companies looking to bring complex electronic and mechanical products to market.
What Should You Send a Contract Manufacturer for an Electromechanical Assembly Quote?
A quote is only as accurate as the package behind it. Much of it is the same as any assembly RFQ (our box build guide has the full list), but a product with motors and moving parts needs a few things a board or enclosure quote doesn't:
- A BOM with manufacturer part numbers and approved alternates for every motor, switch, relay, sensor and connector. Long-lead electromechanical parts often set the schedule.
- A STEP model of the full assembly, plus 2D drawings with the critical dimensions and tolerances flagged.
- The wiring diagram and harness drawings: wire gauge, lengths, connectors and pin-out.
- Motor and actuator requirements: voltage, current, speed or stroke, and duty cycle.
- Fastener torque values, plus any thread-locking, potting or sealing requirements.
- The firmware image and programming procedure. Many assemblers flash firmware but don't write it, so state who owns the code and its updates.
- The test specification: what gets tested, pass/fail limits, IPC class, IP rating, and who supplies the fixtures.
- Target certifications and markets, such as CE, UL, CSA, ETL or FCC. Our UL vs ETL vs CSA comparison helps with North America.
- Volumes for prototype, pilot and annual production, plus packaging requirements and the shipping destination.
Missing a few of these is normal at RFQ stage. Say which ones, and a supplier's DFM team can fill gaps or draft a BOM, but review and approve anything they draft before production starts.
Komaspec’s Electromechanical Assembly Services
Komaspec has built mechanical and electromechanical products for OEMs since 2005, in mining, agriculture, commercial appliances, IoT, fitness and marine sport, and automotive accessories. About 70% of our customers order full product assembly, where sheet metal, plastic parts, PCBAs, cable harnesses and motors come together as a finished, packed product shipped to 3PLs and distribution centres in more than 25 countries.
Our engineers give DFM feedback at RFQ, drawing and sample stage. On the line, every unit goes through functional testing, with results linked to that unit through scan-in/scan-out traceability, and we build product-specific test jigs and go/no-go gauges for the checks. We also support customers through product certification to standards such as CE, UL, CSA, ETL and FCC. See our electromechanical assembly services for the full scope.
Have a motor-driven or sensor-based product heading for production? Send us your BOM and drawings for a free DFMA review and an itemized quote.
Frequently Asked Questions
What is an example of an electromechanical assembly?
A motorized standing desk is a good example. A keypad and control box send signals to motors in the legs, which raise or lower the frame until it reaches the set height. Other examples include automated beverage dispensers, robotic grippers, electric power steering, power windows and control panels built around relays and switches.
What is the difference between electromechanical assembly and box build?
An electromechanical assembly joins electrical and mechanical components so a unit moves or does work, and it can be either a sub-assembly or a finished product. A box build is always a finished product: every sub-assembly installed in its enclosure, tested, labeled and packed. Many box builds contain electromechanical assemblies inside them.
What is the difference between mechanical and electromechanical assembly?
Mechanical assembly joins parts with fasteners, press fits, welds or adhesives, and nothing in it is powered. Electromechanical assembly adds the electrical side: PCBAs, harnesses, motors, sensors and switches. That brings electrical testing, ESD control and firmware into the build, on top of the usual mechanical fit and torque checks.
Which IPC standards apply to electromechanical assemblies?
Two IPC standards cover most of the workmanship. IPC-A-610 sets acceptance criteria for soldered electronic assemblies such as PCBAs, in Class 1, 2 or 3. IPC/WHMA-A-620 covers cable and wire harness assemblies. Mechanical fit, fastener torque and function are checked against your own drawings and test specification.
What does an electromechanical assembler do?
An electromechanical assembler builds equipment from electrical and mechanical parts. The job covers reading blueprints, fitting and fastening components, routing and connecting wiring, soldering, and testing the finished unit for correct dimensions and mechanical reliability. Typical tools include drill presses, wire strippers, crimpers and torque wrenches, alongside the test fixtures built for each product.
