How Material Properties Impact Air Bending Precision and Tolerances

 Impact Air Bending Precision and Tolerances
Section 1

Bending Tolerances

Bending tolerances are a crucial part of your sheet metal fabrication. For parts requiring precision fabrication, be sure you understand what can impact those tolerance. Today’s bending equipment can be highly precise, however, the sheet metal itself presents the most significant challenge to achieving tight tolerances. In particular, air bending has some key considerations that impact bending tolerances:

  • Material thickness
  • Springback
  • Direction of metal grain
  • Material chemical and mechanical properties
Section 2

Material Thickness

Variations in material thickness are one of the most common challenges when achieving bending tolerances. Sheet metal can have variations in thickness throughout a single sheet or between sheets. The nature of the rolling process often means sheets are thicker in the middle than the edges.

The gauge of different sheet metals is usually discussed with respect to averages, but in reality, the actual thickness can be anywhere within a specific range for that category. "A mere plus or minus 0.006 in. variation in material thickness can represent as much as 4 degrees of angular variation."

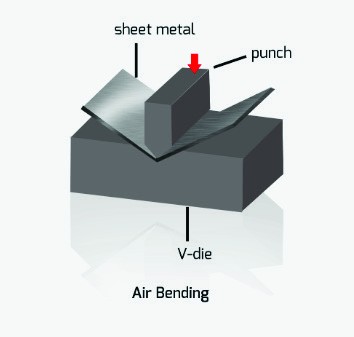

A very small variation in thickness can impact a bend angle by a few degrees. This has a big impact on results – especially when tight tolerances are required. Because with air bending, the bend angle is determined by width of the die and the depth of the punch, a variation in material thickness makes precision more challenging. If a narrow die is used, the impacts of inconsistent thickness is amplified.

Order and track sheet metal components online through Komaspec's on-demand sheet metal fabrication platform.










Section 3


Springback is the “bounce” back of the metal after the press has been applied and removed. The sheet metal is compressed on the inside, where the press is applied, and stretched on the outside.

Because the material has a higher compression strength than tensile strength, it springs back towards its original shape.  It is difficult to calculate springbackaccurately, but it needs to be considered when calculating the bend.  Fabricators use the K-factor  to calculate the springback factor and better understand how to compensate and achieve tighter tolerances.

The material’s plasticity is also a factor for springback. Plasticity is a measure of the material’s ability to deform without breaking and retain that shape.  Higher plasticity metals are often better choices for forming and bending.

Several factors affect springback:

  • Materials with higher tensile strength have more springback
  • A sharp bend radius usually has less springback
  • Wider die openings result in more springback
  • The larger the bend radius relative to the material thickness the more the springback
Tensile Strength
Cold Rolled Steel (CRS)
SPCC ≥350MPa
SAPH440 ≥440MPa
Hot Rolled Steel
Q235 375 ~500MPa
Q345 490 ~675MPa
Spring Steel
65Mn ≥980MPa
AL 1060 ≥75MPa
AL6061 T6 ≥260MPa
AL6063 T5 ≥250MPa
AL5052 H32 210 ~ 260MPa
SS301 ≥520MPa
SS304 ≥520MPa
SS316 ≥520MPa
Cold Galvanized Steel
SGCC ≥380MPa

To eliminate the impact of springback when air bending, fabricators can overbend the part. In this case, the bend is done to a smaller angle to compensate for the anticipated springback.

Section 4

Grain Direction

Fabricators should be aware of the sheet metal grain when choosing how to form a part. The grain is formed during the rolling process, with the grains running in a parallel direction to the rolling process. When forming or bending sheet metal with the grain (longitudinal), less force is required because the material is more ductile. However, longitudinal bends are best for a larger bend radius because the process can cause the grains to spread and produce cracks on the outside of the bend. Bending across the grain (transverse) requires more pressure but allows for a smaller radius with less risk of cracking on the outside of the bend.

Section 5

Material Properties

Malleability is the ability to permanently press or deform a part without breaking or cracking.

Less malleable metals may require heat to achieve the desired effects.

6061 Aluminum Difficult to bend and often cracks.  Cold bending will weaken the metal.  Annealing improves malleability.
5052 Aluminum Very malleable and good choice when using aluminum.  Cracking is rare unless a part is reworked and.
Annealed alloy steel Varies based on the alloy.  4140 has good malleability.  Annealing helps prevent cracking.
Brass Zinc content is important.  Higher zinc levels make it less malleable.  Good for simple bends but complex parts may require heat.
Bronze More difficult to bend and may require heat to avoid cracking.
Copper Very malleable.
Cold rolled steel Less malleable than hot rolled steel.
Hot rolled steel More malleable than cold rolled steel.
Mild steel Very malleable.  Heat not required.
Spring steel Malleable when annealed.  Once work hardened it requires heat to bend again.
Stainless steel Stainless steels like 304 and 430 are easier to form than 410 which can be brittle.  Different grades will perform differently although stainless steel is prone to work hardneing
Titanium Strong material so best to design with a large internal bend radius.  Overbending required because of springback.
Section 6

Strain Hardening

Air bending can cause strain hardening. Metal has a “yield point” and when strain is applied in the air bending process that reaches the yield point of the metal, it gets stronger and more force is required to bend it further. Strain hardening can pose problems in fabrication but can also be used to an advantage in producing strong parts. Materials like mild, low carbon steel and aluminum are more ductile and can be bent to a sharper radius without strain hardening.

Section 7


Bendability is an indication of the minimum bend radius, or the bend radius at which cracking of the outer surface occurs. It is often referred to in terms relative to the thickness of the material. Bendability can be reduced by rough edges as cracking can originate there. Material impurities or rough surfaces can also increase the likelihood of cracking and change the bendability. Using good quality materials and completing any necessary pre-bending processes can help minimize the impacts.

Section 8

Overcoming Limitations

Fabricators can help minimize the material impact on precision bends with different techniques and tools:

  • Measure and adjust - Fabricators program their CNC air bending equipment for a specific angle and will measure it once complete. If necessary, they can adjust the equipment and re-hit the part. This is only practical where few bends or parts are required.
  • Over produce - If only a few parts are required, fabricators may choose to manufacture additional, measure the angle, and choose only those that are consistent or best. This is not feasible for large runs.
  • Mechanical angle correction devices - Mechanical touch probes can be installed on CNC bending machines to move to the bend, measure it, trigger any necessary adjustment, and then move away again.
  • Laser angle correction devices - Laser sensing technology can feed measurements to the CNC equipment to adjust for the desired angle. This technology minimizes disruption to the fabrication process and won’t add to the production time.
