Introduction to Laser cutting
The term LASER originated as an acronym which stands for Light Amplification by Stimulated Emission of Radiation. Because of the spatial coherence of laser light, the light spot can be intensely focused onto an object, causing an extreme elevation in the temperature of the illuminated area. This causes the material under the illuminated area to melt rapidly or be vaporized and consequently a cut or fissure will form in the material. This is the basis of laser cutting used in industry today (“What Is Laser Cutting? - A Definitive Guide to the Process”).
A wide variety of materials can be formed or processed through laser cutting but the most common materials that are cut with lasers today are metals such as medium range carbon steels among a host of others. Other materials like wood, plastics and ceramics are also able to be cut with lasers and the laser technology used to cut these materials is quite different from that used to cut metals. More about that later.
The various technologies for laser cutting have evolved considerably within the previous twenty years or so and now the engineer has an extremely wide choice of laser, machining principles and computerized control to precisely cut a material to an impressive level of accuracy that was not possible only a few years ago.
Order and track sheet metal components online through Komaspec's on-demand sheet metal fabrication platform.
Common Applications for Laser Cutting
Due to the low set-up costs, rapid turnaround, low and medium volume production flexibility, laser cut parts are widely used in a number of fields and applications, including:
- Automotive parts
- Recreational vehicles
- Consumer electronics
Due to the high number of industries serviced by laser cutting part suppliers, there are few good statistics out there on the industry market size, but sales of laser cutting machines have increased on average 10% per year consistently (“Laser Cutting Machines Market Size Worth $6.72 Billion By 2024”). This tracks with the increased performance of laser cutting machines and technology vs the alternatives in the market.

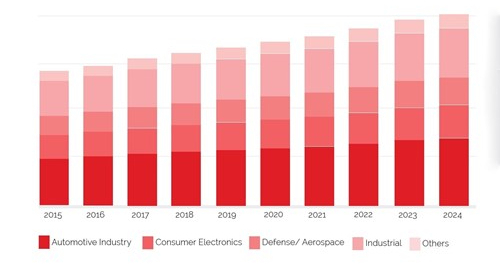

Fig. 1: Chart illustrating the dominance of the Automotive Industry among other industries using laser cutting technology (“Laser Cutting Machines Market Size Worth $6.72 Billion By 2024”).
Taking the automotive industry as an example, lasers can be used to cut interconnecting parts on most of the chassis, hydroformed part secondary processing and even air bags (“Laser Cutting in the Automotive Industry”)

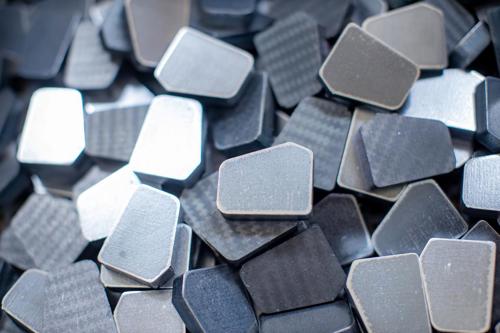

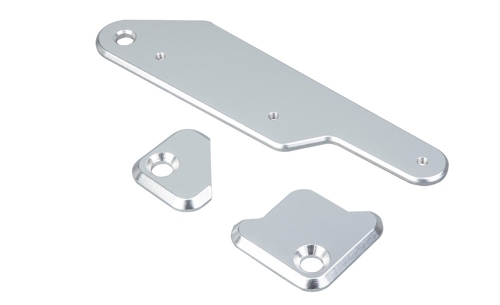

Fig. 2: An example of laser cut part
Laser Cutting Processes & Types
The three most commonly used laser cutting processes are fusion cutting, oxidative cutting and scribing.
- Fusion cutting uses reaction inhibiting nitrogen or argon as the cutting gas and has the advantage of producing a virtually oxide free cutting edge.
- Oxidative cutting uses oxygen as an assist gas which increases heat and the reaction rate at the cutting interface which in turn enables the cutting of thicker material at faster rates but with less quality of surface finish.
- Laser scribing is used mainly in the electronics industries to process thin films of material.

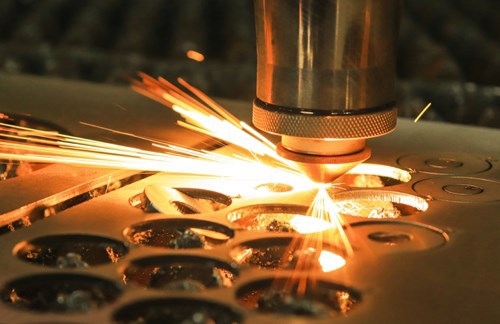

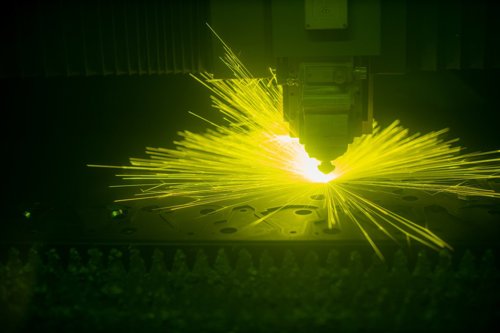

Fig. 3: Typical oxidative laser cutting of sheet metal
Within these three processes of laser cutting there are a number of different types of lasers that can be used such as fiber, or solid-state lasers, and gas lasers such as the CO2 emission gas laser.
Stimulated Gas Emission Lasers (e.g. CO2 lasers)
The carbon dioxide gas emission laser is one of the highest power continuous wave lasers available for cutting today. It also has been in service for the longest time, and as a mature technology, it is a good place to begin describing gas emission lasers.
Fig. 4: Diagram representing functional parts of the CO2 laser
From the above diagram it can be seen quite clearly how the functional parts of a CO2 laser fit together. Mirrors are needed to reflect the light into a monochromatic stream of light photons of high intensity that exit the laser at the wavelength shown. Water is used to cool the gas tube during stimulated emission and various gases such as CO2, N2 and helium can be used during the process.

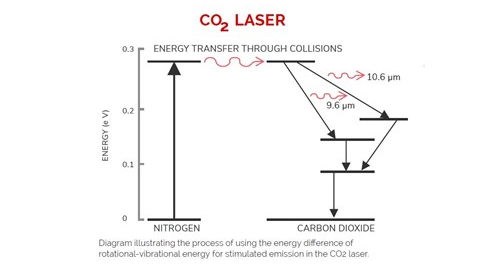

Fig. 5: Diagram illustrating the process of using the energy difference of rotational-vibrational energy for stimulated emission in the CO2 laser
From the diagram above it can be seen that within the vibrational energy levels of CO2, there are rotational sub-energy levels. A mixture of N2 and CO2 is introduced into the gas cylinder where the N2 atoms are excited through an electrical pumping system. The excited N2 atoms begin colliding with the CO2 atoms where an energy transfer takes place causing the CO2 atoms to enter a higher vibrational energy level.
At this higher vibrational level of energy, spontaneous emission occurs and the CO2 atoms reduce in vibrational-rotational energy and give off some of their energy to increase the energy and intensity of the incident light.
CO2 laser cutter benefits include:
Cut thicker materials at equal wattage to fiber
Superior finishing (i.e. fewer burrs) when cutting thicker material
Laser cutting with oxygen assist
Gas (e.g. CO2) laser cutting is most often conducted with an assist gas which may be either an active gas like oxygen or an inert gas like nitrogen/argon.
Oxygen is the standard active assist gas for the laser cutting of mild and high carbon steels. When cutting with oxygen, the material being laser cut is burned under the accelerated action induced by the chemical reactivity of oxygen at the elevated temperatures induced by the CO2 laser. The burned material is sometimes vaporized if the induced temperature in the vicinity of the laser cut is high enough. The liquid iron oxide of low viscosity is removed from the kerf by the shear force of the oxygen jet directed into the kerf.
The pressure of the oxygen jet determines the rate of removal of the melt shear from the kerf and the value of the maximum oxygen pressure will be determined by the material thickness to be cut. Oxygen purity is important for quality cutting.
Laser cutting with Nitrogen Assist
Cutting with non-reactive gases such as nitrogen is often referred to as clean cutting or high-pressure cutting. In this case, the material is melted solely by the laser power and blown out of the cut kerf by the kinetic energy of the gas jet.
With nitrogen assisted laser cutting, the melt-shear removal process is the only active process as inert gases do not react with the molten metal and no additional heat is generated. Therefore, much higher laser power and gas pressures are required. This is because the molten steel has quite a high viscosity compared with the liquid iron oxide generated during cutting with oxygen.
Laser cutting with nitrogen would be a typical choice for cutting some stainless steels (to avoid part oxidation), as well as aluminum and some of its alloys.
With recent advances in technology and capabilities, fiber lasers are rapidly becoming the laser of choice for industrial cutting applications. A fiber laser is a type of solid-state laser where the monochromatic and pumped, intensified light is directed and wave-guided down an optical fiber towards the cutting surface and is not passed through any gas for stimulated emission (i.e. a “solid gain medium”).

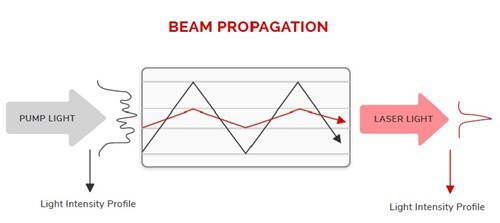

Fig. 6: The active components of a fiber laser and beam propagation
Fiber laser cutter benefits include:
- More rapid processing times vs CO₂
- Greater energy efficiency (2 to 3 times that of CO2)
- Greater reliability and performance; no optics alignment or adjustment
- Reduced maintenance
- The ability to process highly reflective materials such as copper and brass
- Ability to cut thinner metals (better wavelength absorption)
In the diagrammatic view below, Figure 7 shows the basic configuration of the optical circuit of a high-power fiber laser. The optical circuit consists of three major sections: Pump section, Oscillator section, and Beam delivery section. In the Pump section, laser light from pumping laser diodes (LDs) passes through optical fibers into a pump combiner. The pump combiner couples the pump light from the multiple LDs into a single-mode optical fiber.
In the Oscillator section, the pump light from the pump combiner propagates through a double-clad fiber (active fiber), as depicted in Fig. 6. The pump light excites the Yb ions and is amplified by the FBGs (Fiber Bragg Gratings). The FBGs act as mirrors with high and low reflectivity. The laser light is emitted from the low-reflectivity FBG. The Beam delivery section is composed of an optical fiber which passes the laser light from the Oscillator section to a processing head or a beam coupler.
Fig. 7: Illustration of a fiber laser working mechanism
Generally, when laser cutting metals with fiber lasers, the upper limit on thickness of the metal sheet to be cut is around 20 – 25 mm for mild steels. Above this thickness, higher power CO2 lasers are used but with specialized fiber lasers for a higher price, it is possible to cut thicker plates than this. Fiber lasers are now the tool of choice for cutting metal below 15mm thickness.

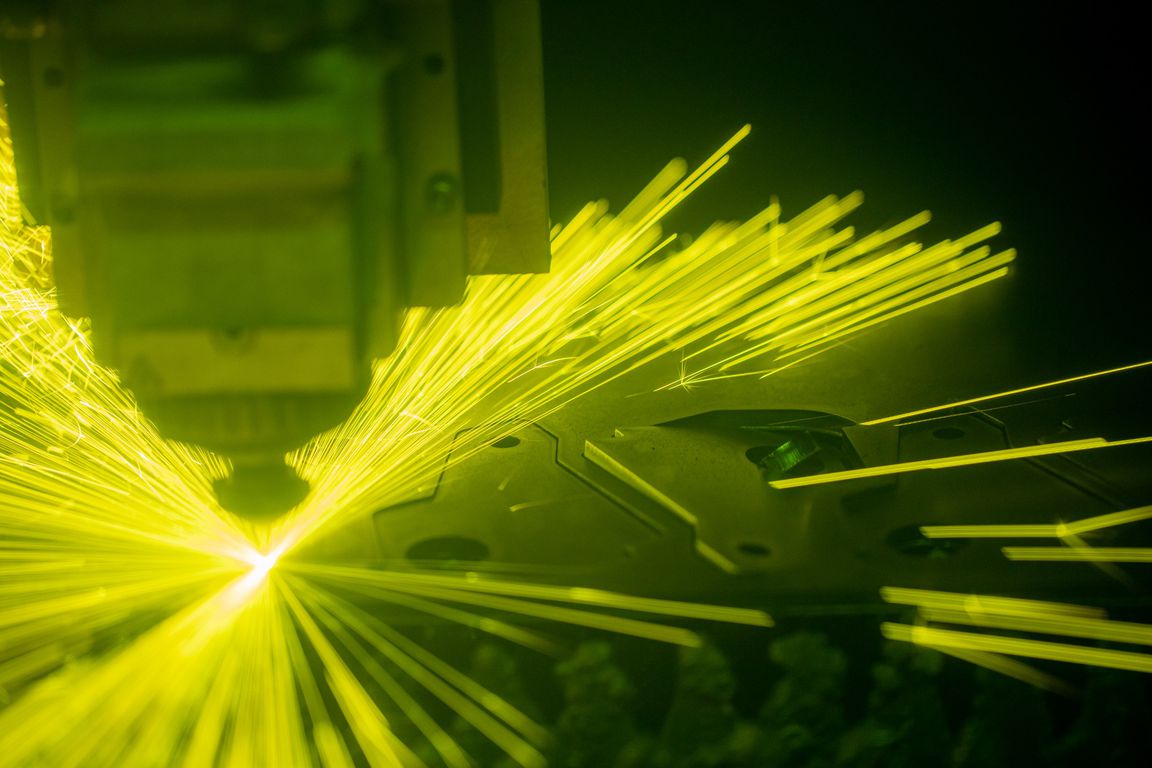

Fig. 8: A high power fibre laser cutting through a thick high carbon steel plate (“HyIntensityTM Fiber Laser Family”).
Laser Type Comparison
The choice of laser cutting technology generally comes down to material, thickness and the light reflectivity of the material being cut. Generally, fiber lasers are superior in cutting reflective material due to significantly smaller beam size, while CO₂ lasers can cut a wider range of materials. An additional complication is oxidation in the case of O₂ assisted CO₂ laser cutting. Below is a table illustrating the best laser cutting technology to use for different materials:
|Type of Laser / Material to be Cut||CO2||CO2 NITROGEN ASSIST||CO2 O2 ASSIST||FIBER LASER|
Table 1: Table illustrating a comparison between CO2 and fibre laser application to cut a variety of materials
Advantages of laser cutting over other cutting technologies
Laser cutting offers many advantages over other cutting technologies such as mechanical die punching, saw cutting, plasma cutting and waterjet. Some of the key advantages are listed and explored below:
- Narrower kerf widths
- Less material distortion and a reduction in the heat affected zone
- Higher cutting precision
- High levels of repeatability
- Less material contamination
- Improved safety conditions for operating personnel
- Higher quality cutting edges and little secondary finishing required post-cut
- Less material wastage due to superior sheet utilization
Laser cutting machines are CNC controlled, and generally operated using complex software to optimize part path, machine speed and sheet metal utilization, which means they produce complex, precision parts in a repeatable and efficient manner. Part variability between production runs is minimal, especially when using a fiber laser machine due to much lower levels of required maintenance.
Laser cutting produces generally high-quality cuts and edges for thinner parts, which means cost secondary finishing or cleaning is usually not required.
Vs Mechanical Cutting
Laser cutting has several key advantages vs mechanical cutting: work holding and reduced contamination of workpiece (no cutting edge to contaminate or be contaminated). Certain part geometries or designs are also possible via laser cutting that could not be made by other methods. Precision is generally better due to less wear and fewer moving parts involved in the cutting process.
Better Sheet Utilization
Fiber lasers in particular have a very focus beam, which reduces kerf width and the amount of material used. Combined with the lower levels of mechanical distortion involved in the cutting process, tighter tolerances, and less material distortion, this means parts can be nested extremely close together on sheet metal being processed by laser cutting. This translates to higher material utilization and lower part cost.
|Advantages||Laser Cutting||Mechanical Cutting||Waterjet Cutting||Plasma Cutting|
|Intricate Design Capabilities||✓|
|No Mechanical Distortion||✓|
|Material Costs (Less Waste)||✓|
|Quick Prototyping/Design Adjustments||✓|
|No Thermal Distortion||✓|
|Range of Suitable Materials||✓|
Table 2. Comparison between various cutting processes (“Understanding Laser Cutting”).
Disadvantages of Laser Cutting
Laser cutting does have some disadvantages vs other fabrication techniques, and these include:
- Material may exhibit some hardening or appearance changes
- A narrower range of suitable materials
- Maximum thickness of 25mm
- Higher energy and power consumption
- High equipment costs (can be reflected in part price)
- Burrs or coarse edge finishing on thick parts
Laser cutting can be used on a variety of metallic and non-metallic materials, but generally each laser cutter type and the assist gas used impose some limitations.
Additionally, laser cutting is limited in the thickness of materials that can be cut – thicker materials in particular can exhibit edge micro-burrs and other issues.
In comparison with plasma cutting, laser cutting for metals is generally more precise and uses less energy, but most industrial lasers cannot equal a plasma cutter’s capabilities with metal parts of higher thickness.
The hardening of laser cut edges due to processing may be problematic for some applications. For example, parts requiring further processing, such as powder coating or painting, may need additional processing following laser cutting before receiving the necessary coating or paint. The addition of this step increases both the turnaround time and total processing costs.
- Laser cutting as a tool to cut and shape materials and especially metals has evolved into a procedure of choice across many metal forming industries.
- The reason for this is the high level of precision and repetitive procedural accuracy that is obtainable with CNC laser cutting.
- Although it is possible these days to use laser cutters to machine thick metal or steel plates, the optimum sheet metal thickness to cut using laser cutters is below 20mm.
- The type of material to be cut will determine which type of laser to use.
- Generally, fiber lasers are becoming the cheapest and most effective laser cutters on the market today but historically CO2 lasers have been used for most metal cutting applications.
If you have any unanswered questions on sheet metal laser cutting, please follow the suggested links in this document to our proprietary literature which provide a wealth of information on many engineering and production topics. Or visit our corporate website: Komaspec.com. Happy reading!
Komaspec’s in-house sheet metal and laser cutting capabilities, and our proprietary laser cut quotation and DFM engine, along with our extensive experience in manufacturing laser cut parts in our China sheet metal facility, enables innovative companies to develop new and complex products quickly and cost effectively. Laser cutting can turn around parts in days rather than weeks and has impressive levels of precision and repeatability.
We are glad to review your product design together and help you select the fabrication process that best suits your product’s needs.
